Allwinner ：HD-733V
  • Features
  • Specification
High-performance octa-core processor
It is equipped with the Allwinner A733 octa-core high-performance CPU, featuring a big.LITTLE architecture of dual-core Arm Cortex-A76 + hexa-core Arm Cortex-A55, built on a 12nm process, with a maximum clock speed of 2.0 GHz.
3 TOPS NPU, delivering powerful on-device AI computing power.
The NPU delivers 3 TOPS of computing power, efficiently supporting the fast operation of various AI algorithms such as AI-SR super-resolution, AI ISP image enhancement, face unlock, and gesture control.

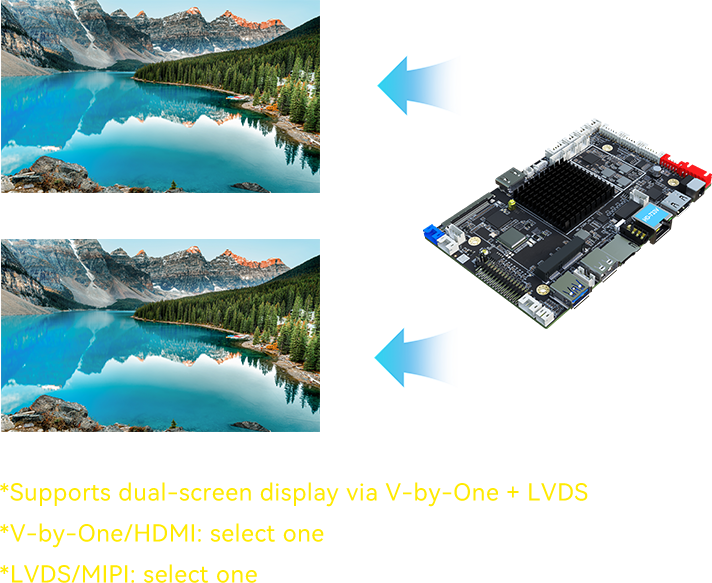

Dual-screen display for a wider range of application scenarios.
Supports dual-screen display and multiple output interfaces including V-by-One, HDMI, LVDS, MIPI and eDP, with a maximum resolution of 3840×2160@60Hz.

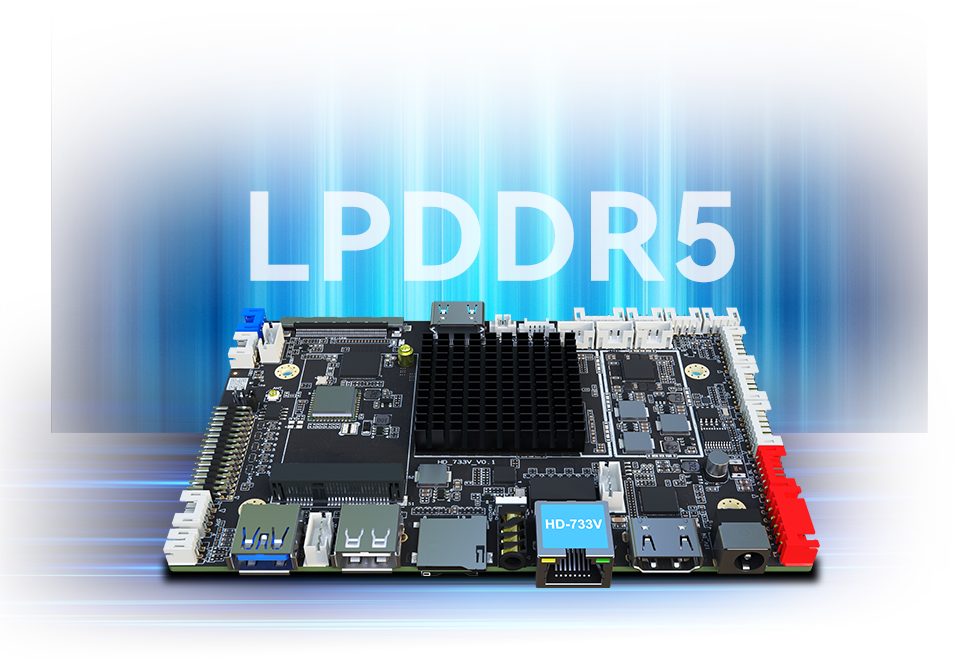

New Generation High-Speed Memory
Adopts LPDDR5 high-speed memory with a maximum frequency of 2736?MHz, delivering faster response speed.

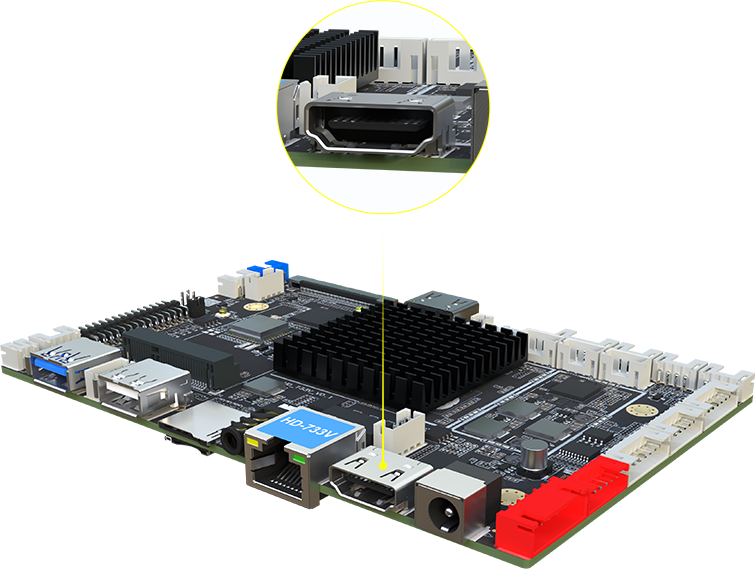

Supports HDMI input.
Supports HDMI IN, with a maximum input resolution of 4K@30Hz.

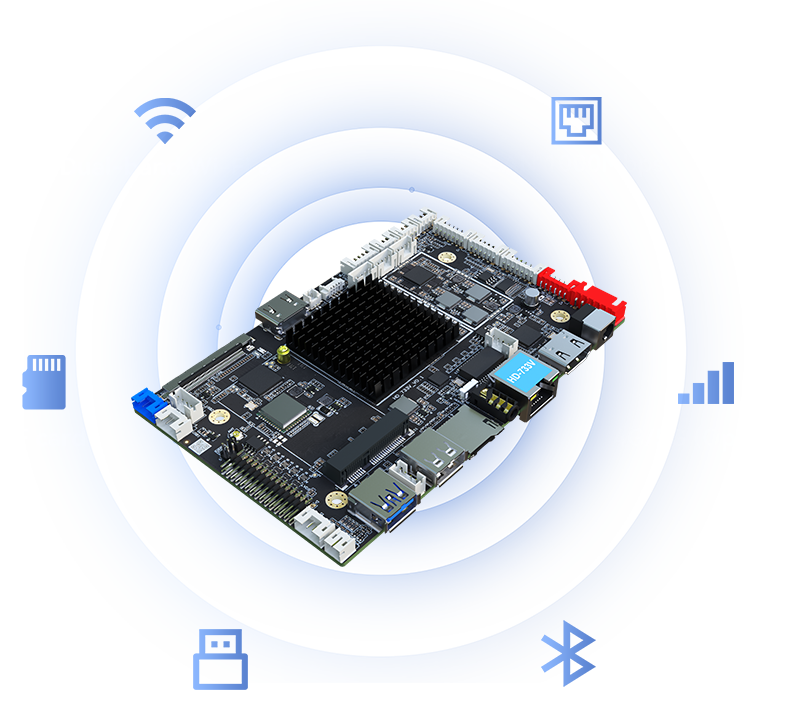

Various program transmission methods
Supports network communication including Ethernet, 4G/5G, Wi-Fi, and Bluetooth, and can directly read local media files from TF cards and USB flash drives, providing a comprehensive and highly flexible solution for program transmission.
Interface
Product Model HD-733V
CPU Allwinner A733MX-HN3, Main Frequency 2.0GHz
NPU 3TOPS
System Version Android 13.0
Display Interface LVDS：1920*1080@60Hz
eDP：1920*1080@60Hz
MIPI：1920*1200@60Hz
HDMI OUT：3840*2160@60Hz
V-By-One：3840*2160@60Hz
Wi-Fi Wi-Fi 6（2.4G+5GHz）
LAN 1000Mbps
Optional 4G/5G √
TF √
Bluetooth BT5.4
HDMI IN √
Messaging software Mobile APP⸺“LedArt”APP; Cloud Platform⸺XiaoHui Cloud; PC Software⸺LCD Player
