HD-R716/R712/R708/R732/R3210
  • Features
  • Specification
  • Download
Feature 1

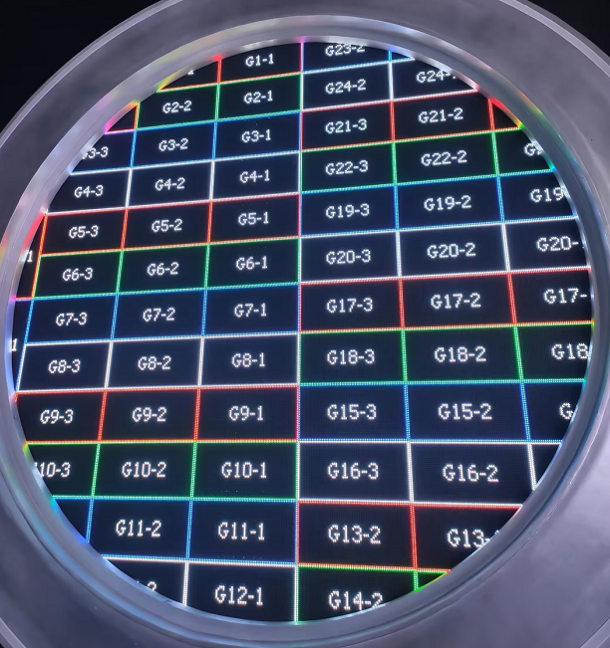

Pioneer setting method of separate panel RGB data group order, visualized connection
Feature 2
Supports module misalignment installation and arbitrary debugging
Feature 3

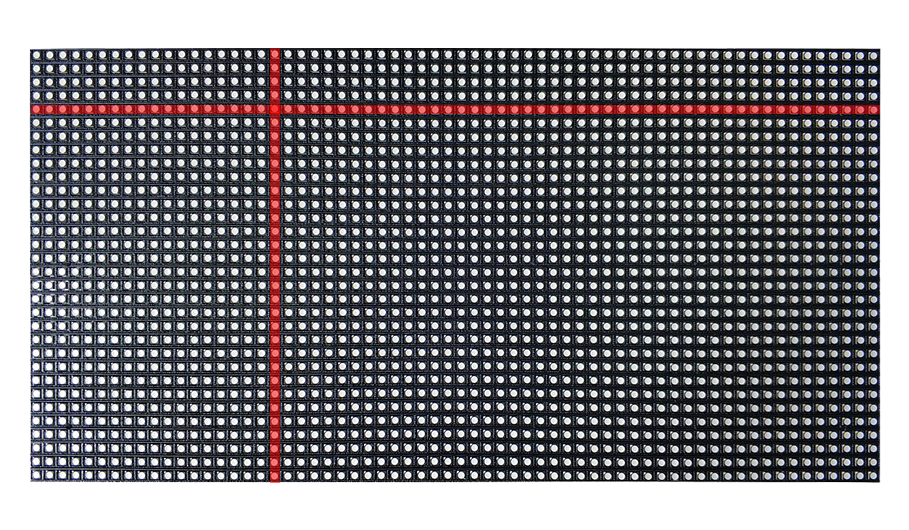

Supports row and column adjustion
Feature 4
Supports static up to 1/128 scan modules

Model
 HD-R716 HD-R712 HD-R708 HD-R732 HD-R3210
Loading Capacity
 512×640 512×512 256×512 512×512 512×512
HUB Interface
 16×HUB75E
12×HUB75E
 8×HUB75E
8×HUB320
 10×HUB320
Data Output
 32 group of RGB
24 group of RGB
 16 group of RGB
32 group of RGB
 40 group of RGB
Scanning
 Static~1/128
Static~1/128
 Static~1/128
Static~1/128
 Static~1/128
Color Gamut Adjustment
18bit+ 4× 4× 4× 4× 4×
Module Construction
Rotate Animation
Specify Setting
Extract Rows/Columns
Brightness Correction
Arbitrary Sort
Bright Line Control
Mapping
Independent Gamma Adjustment
Power 5W 5W 5W 5W 5W
